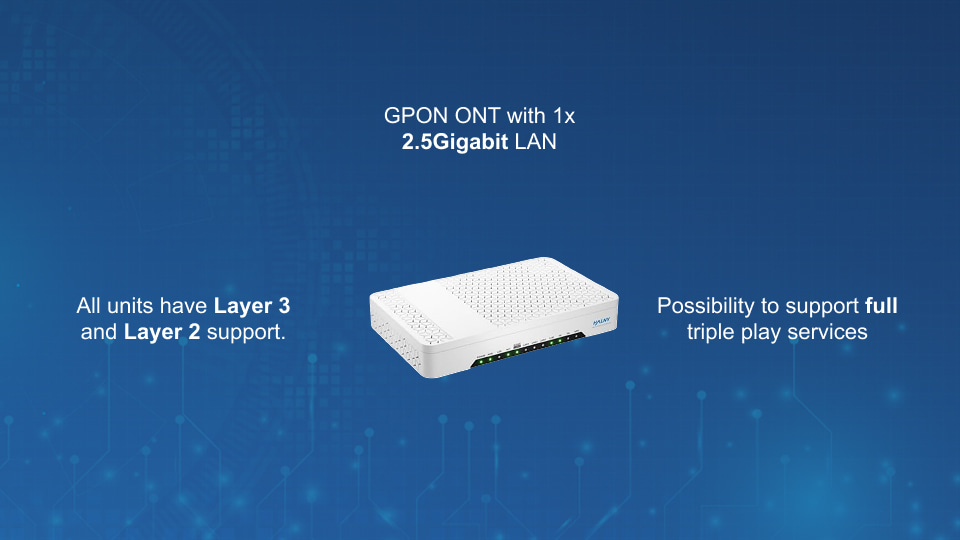

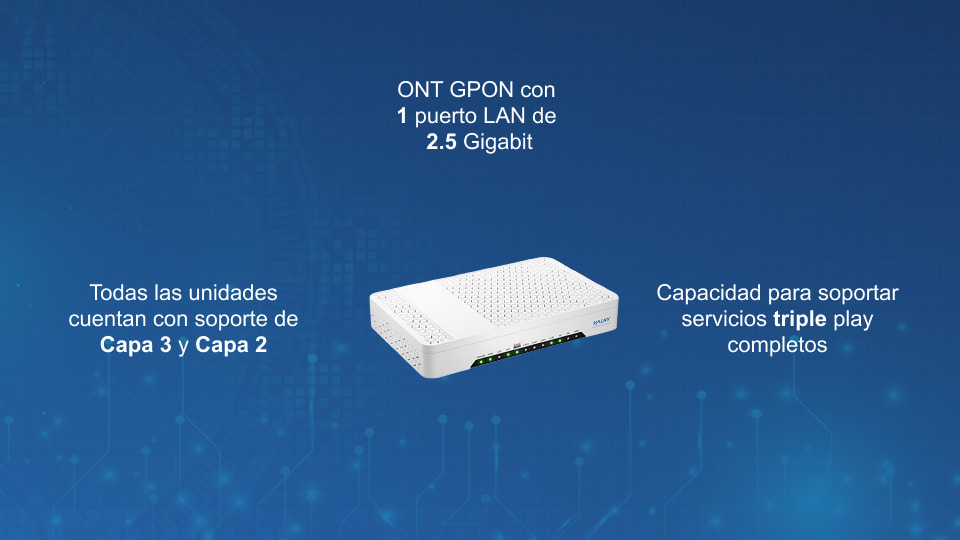

HL-4BX3V-F – GPON ONT with 1x 2.5GLAN, 3x GLAN ports, Wi-Fi 6 (AX3000) and 1x POTS port

HL-4BX3V-F is a Premium GPON ONT that acts as GPON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to gigabit speeds.

All products within the GPON family comply with current ITU-T standards for gigabit passive optical networks (GPONs). The solution is designed to optimize the deployment and roll-out of the service provider. HL-4BX3V-F design guarantees multi-interoperability with number of OLT vendors. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.

HALNy HL-4BX3V-F provides one GPON port, one 2.5Gigabit Ethernet port, three Gigabit Ethernet ports, WIFI 6 3000AX (2.4GHz and 5GHz) Wireless interface with internal antennas and one Voice FXS ports. This gives possibility to support full triple play services for high speed Internet access, IPTV and voice.

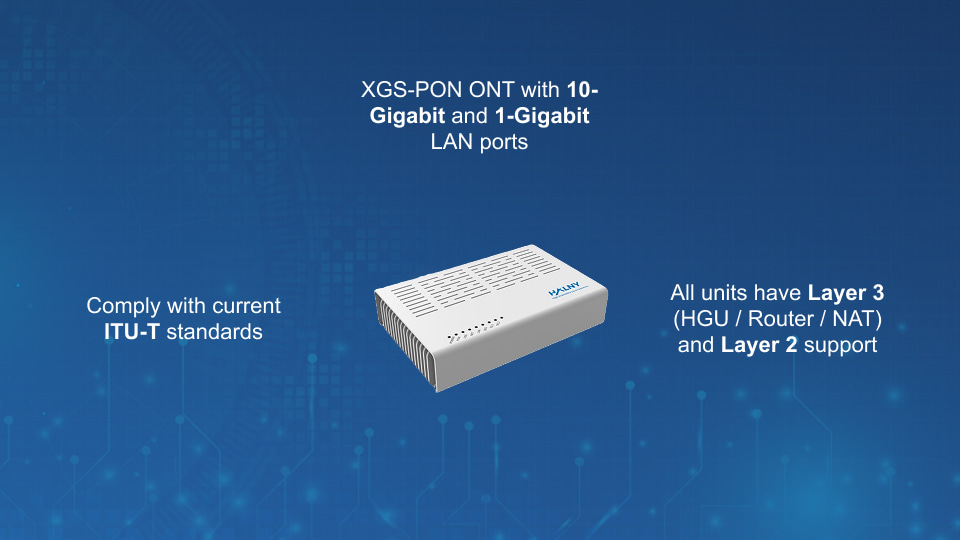

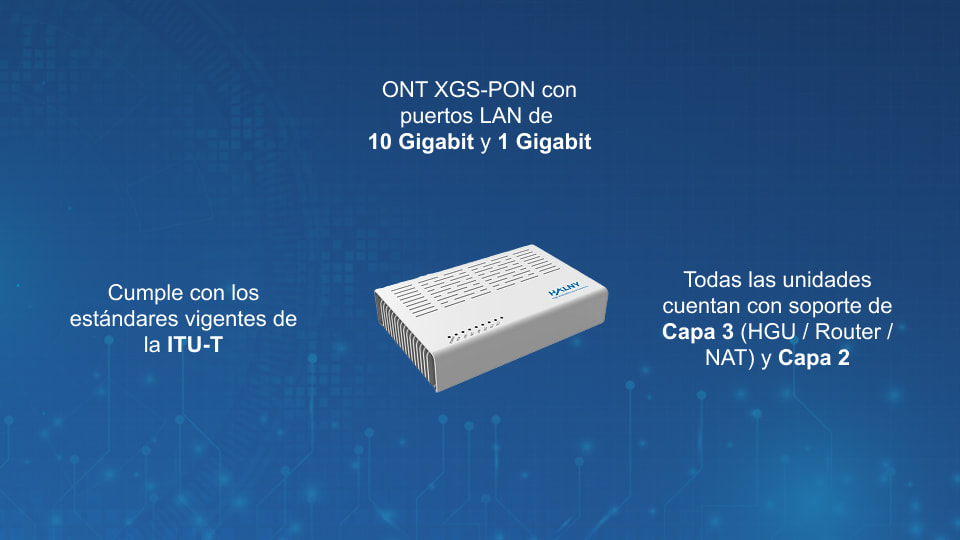

HLX-TGV – XGS-PON ONT with 1x 10GLAN, 1x GLAN and 2x VoIP RJ11 ports

HLX-TGV is XGS-PON ONT that acts as XGS-PON Home Gateway Unit and is designed to provide affordable access to FTTH networks. The products use a single fiber to connect individual houses and businesses to the network for broadband services up to 10-gigabit speeds.

All products within the GPON family comply with current ITU-T standards for 10-gigabit passive optical networks (XGS-PONs). The solution is designed to optimize the deployment and roll-out of the service provider. HLX-TGV design offers multi-interoperability with several OLT vendors. The ONT/ONU products are tested and have proven interoperability with most major GPON OLT Vendors.

HALNy HLX-TGV provides one XGS-PON port (SC/APC type), 10-Gigabit and 1-Gigabit Ethernet ports. All units have Layer 3 (HGU / Router / NAT) and Layer 2 support.

Telecom Duct Cable Installation Into Existing Ducts (Multi-Tube Construction Single Jacket)

Características:

• Highly resistant, UV-stabilized HDPE outer jacket
• Fibre-glass yarns as a strain relief and rodent protection
• SZ stranded cable core
• FRP central rod
• Jelly-filled, PBT loose tubes (Ø 2.0mm/0.0787inch) with optical fibres
• Fillers (if applicable)
• Dry cable core – water-blocking tape and/or yarns
• Ripcord – two pieces on opposite sides

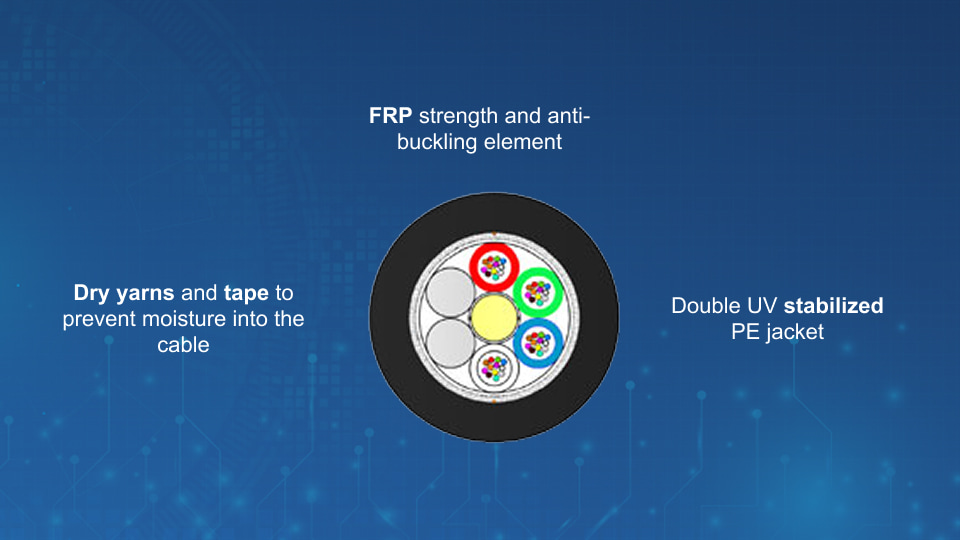

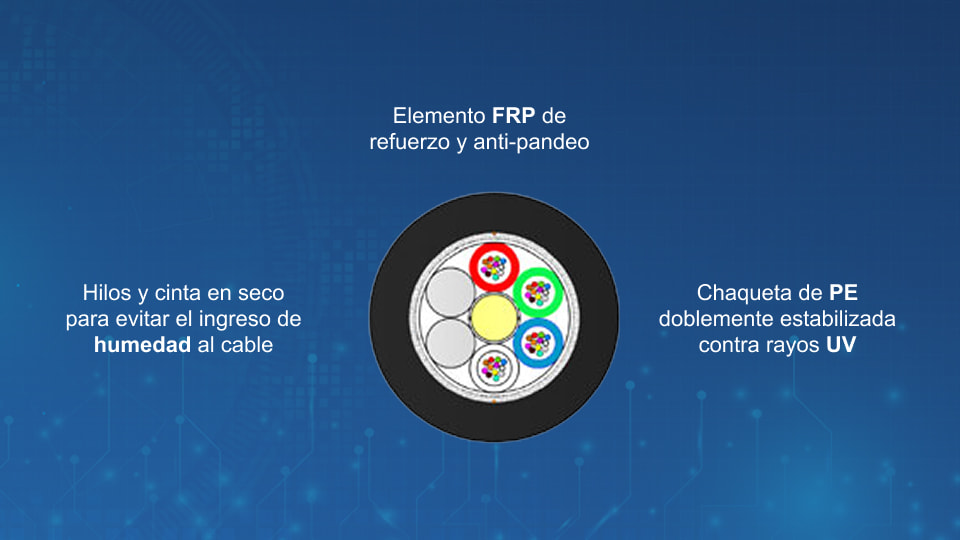

Telecom Duct Cable Installation Into Existing Ducts/Directly Buried (Multi-Tube Construction Double Jacket)

Características:

• FRP strength and anti-buckling element
• Gelly filled, PBT loose tubes (Ø 2.0mm0.787inch) with optical fibres
• Dry yarns and tape to prevent moisture into the cable
• Glass yarns as a tensile strength element and rodent protection
• Double UV stabilized PE jacket
• Outer jacket options: LSOH, PA etc.

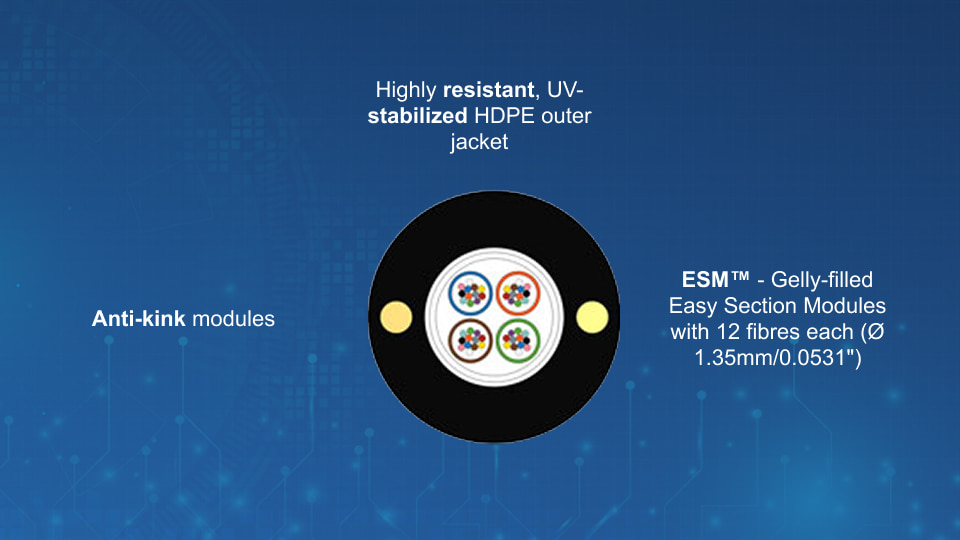

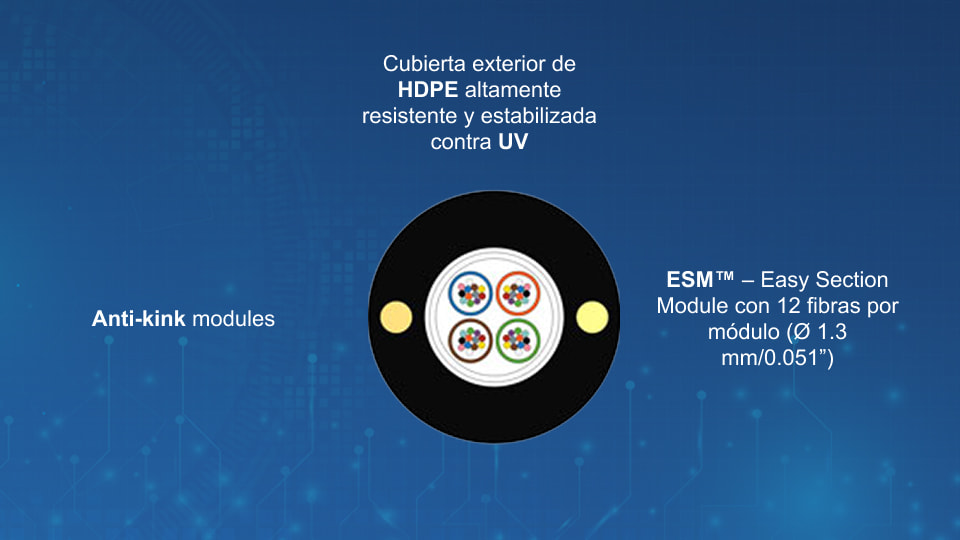

Telecom Duct Cable Installation Into Existing Ducts (Soft-Tube Construction Single Jacket)

Características:

• Highly resistant, UV-stabilized HDPE outer jacket
• ESM™ – Gelly-filled Easy Section Modules with 12 fibres each (Ø 1.35mm/0.0531″)
• Anti-kink modules
• Dry cable core – water-blocking yarns and/or tape
• FRP rods embedded into the outer sheath
• Polyester ripcord, two pieces on opposite sides

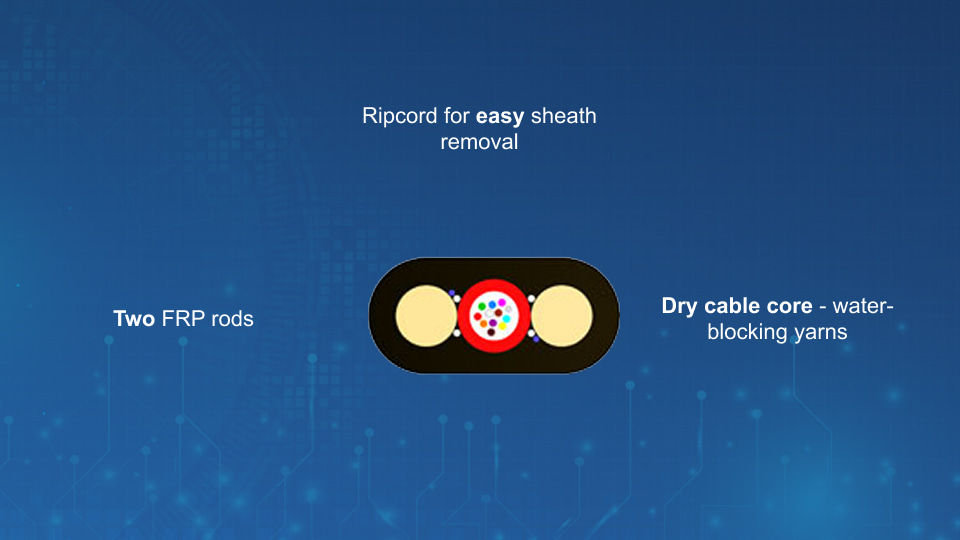

Telecom Aerial Cable Last Mile Connection (Flat Construction Single Jacket)

Características:

• Highly resistant, UV-stabilized HDPE outer jacket
• Two FRP rods
• Dry cable core – water-blocking yarns
• Gelly-filled central tube (PBT) with up to 24 optical fibres
• Ripcord for easy sheath removal

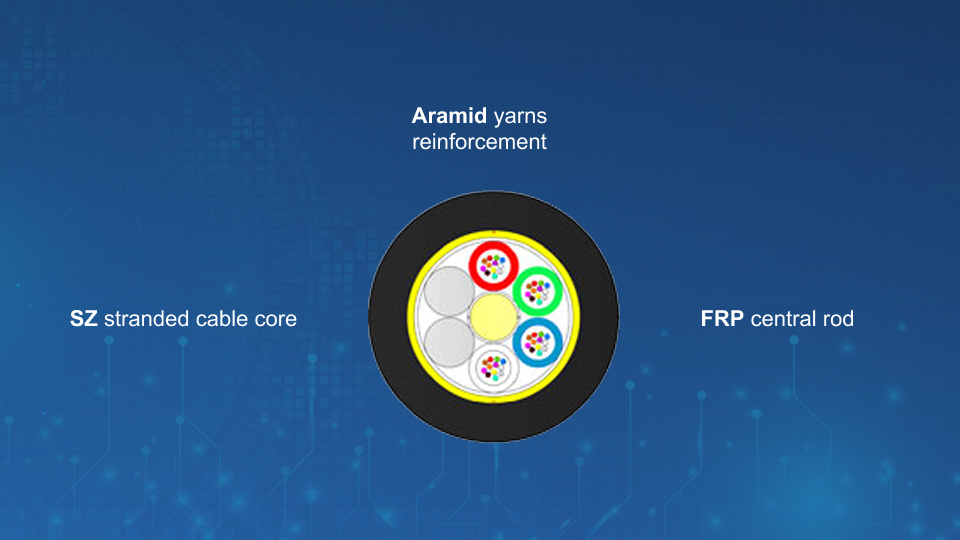

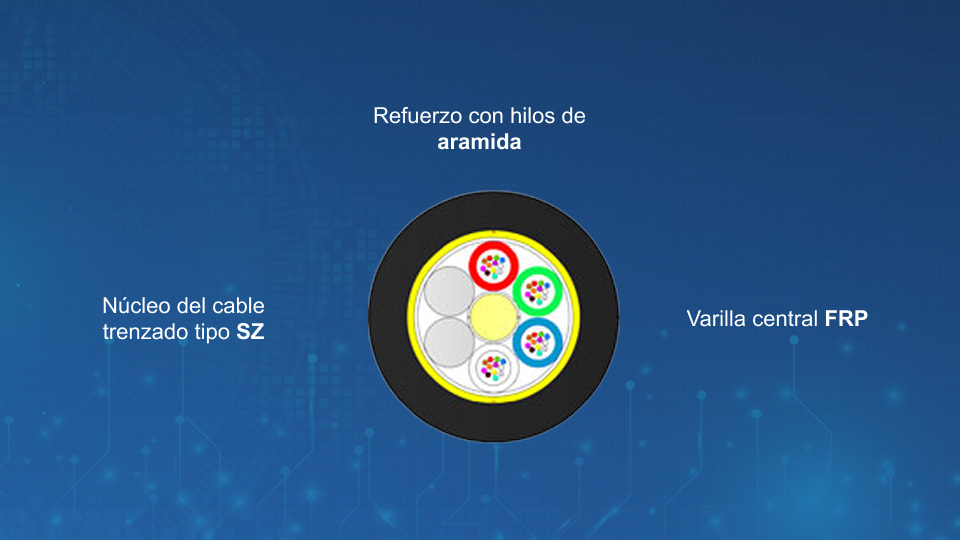

Telecom Aerial Cable (Multi-Tube Construction Single Jacket)

Características:

• Highly resistant, UV-stabilized HDPE outer jacket
• Aramid yarns reinforcement
• SZ stranded cable core
• FRP central rod
• Dry cable core – water-blocking tape and/or yarns
• Ripcord – two pieces on opposite sides
• Gelly-filled, PBT loose tubes (Ø 2.0mm/0.079inch) with optical fibres

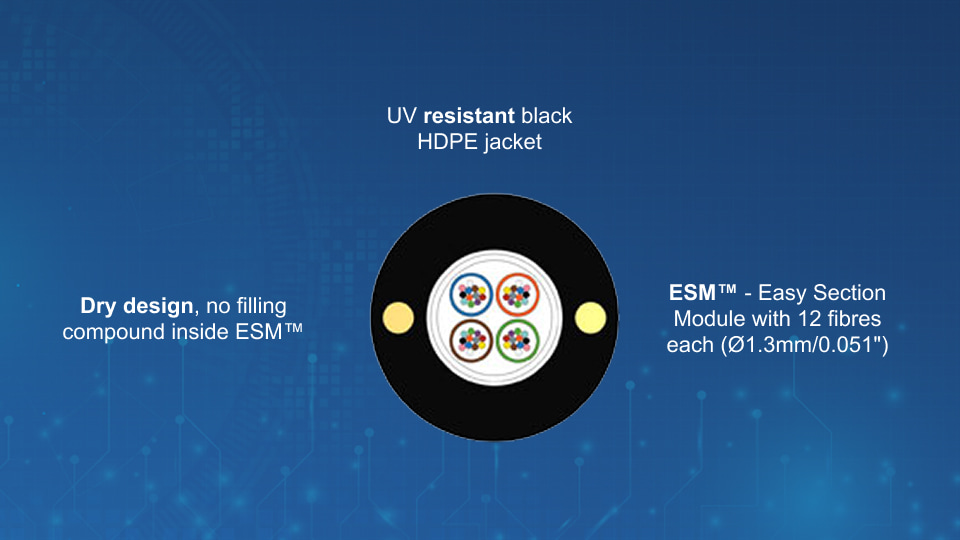

Telecom Aerial/Duct Cable (Soft-Tube Construction Single Jacket)

Características:

• ESM™ – Easy Section Module with 12 fibres each (Ø1.3mm/0.051″)
• Dry design, no filling compound inside ESM™
• Water blocking aramid yarns as a strain relief
• Water swellable elements
• FRP rods as strength and anti-buckling elements
• UV resistant black HDPE jacket
• Polyester ripcord, two pieces on opposite sides

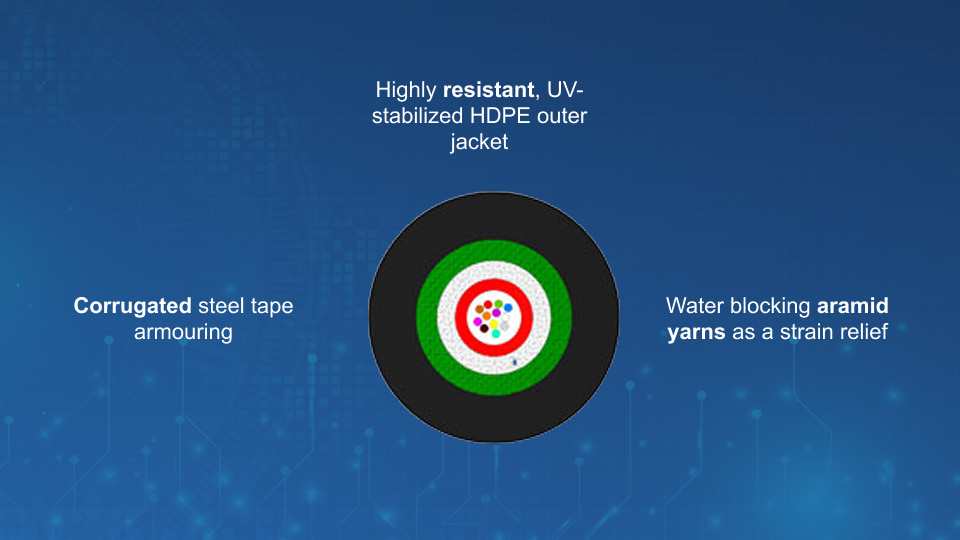

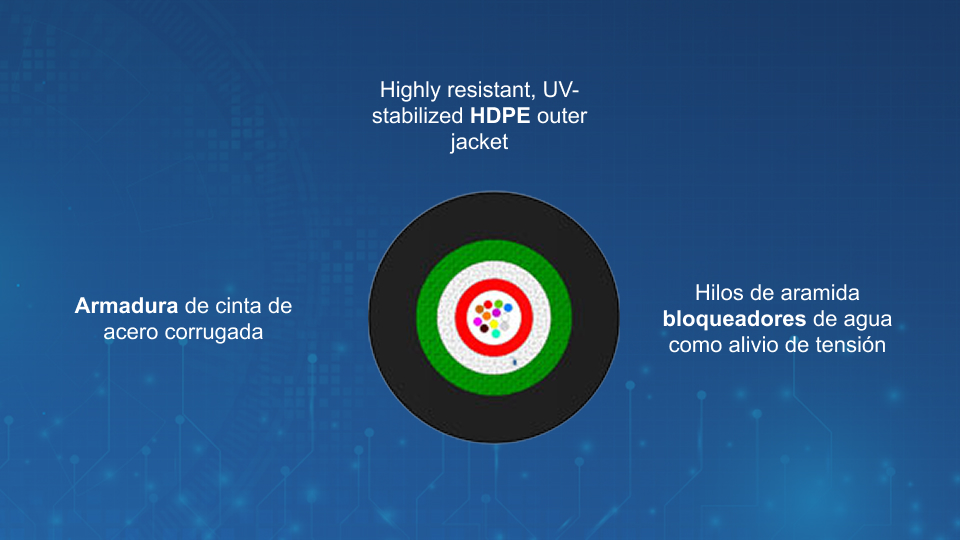

Telecom Armoured (Corrugated Steel Tape) Directly Buried/Duct Cable (Central-Tube Construction Single Jacket)

Características:

• Highly resistant, UV-stabilized HDPE outer jacket
• Corrugated steel tape armouring
• Water blocking aramid yarns as a strain relief
• Water tightness yarns to prevent moisture into the cable
• Central loose tube (Ø 3.0mm/0.118inch) with filing compound and optical fibres

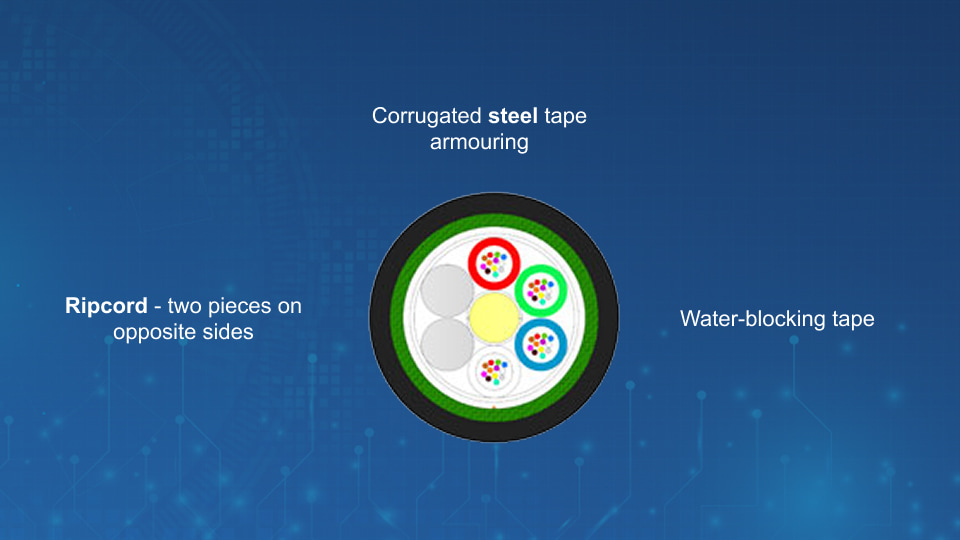

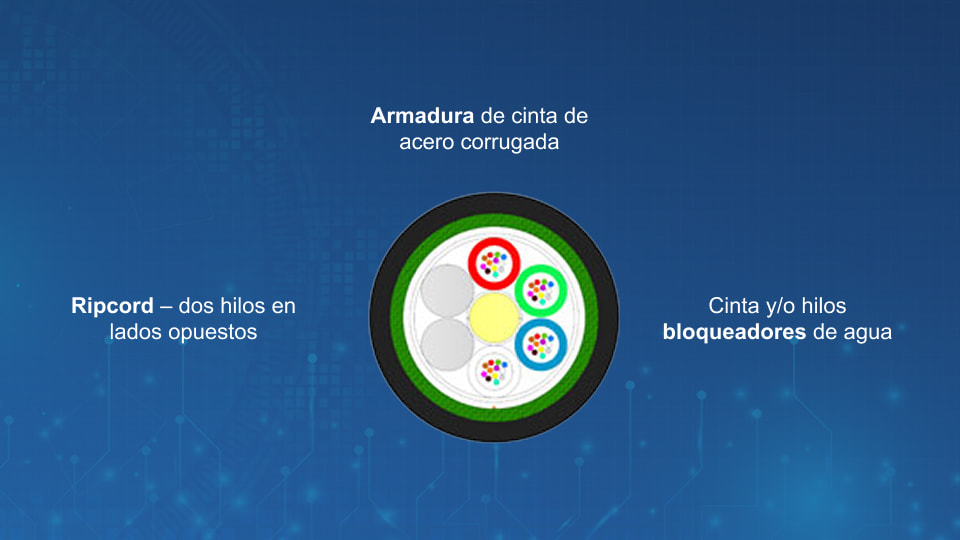

Telecom Armoured (Corrugated Steel Tape) Directly Buried/Duct Cable (Multi-Tube Construction Single Jacket)

Características:

• Highly resistant, UV-stabilized HDPE outer jacket
• Corrugated steel tape armouring
• Water-blocking tape
• Fibre-glass yarns as a strain relief and water-absorbent
• Gelly-filled, PBT loose tubes (Ø 2.0mm/0.079inch) with optical fibres
• Ripcord – two pieces on opposite sides

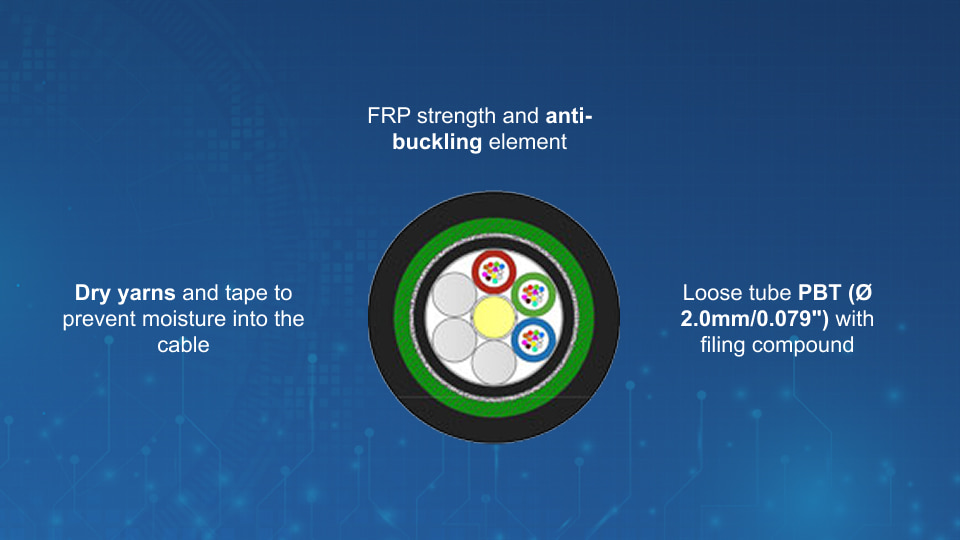

Telecom Armoured (Corrugated Steel Tape) Directly Buried/Duct Cable (Multi-Tube Construction Double Jacket)

Características:

• FRP strength and anti-buckling element
• Dry yarns and tape to prevent moisture into the cable
• Loose tube PBT (Ø 2.0mm/0.079″) with filing compound
• Fibreglass yarns as strain relief
• Corrugated steel tape armouring
• Double UV-stabilized PE sheath

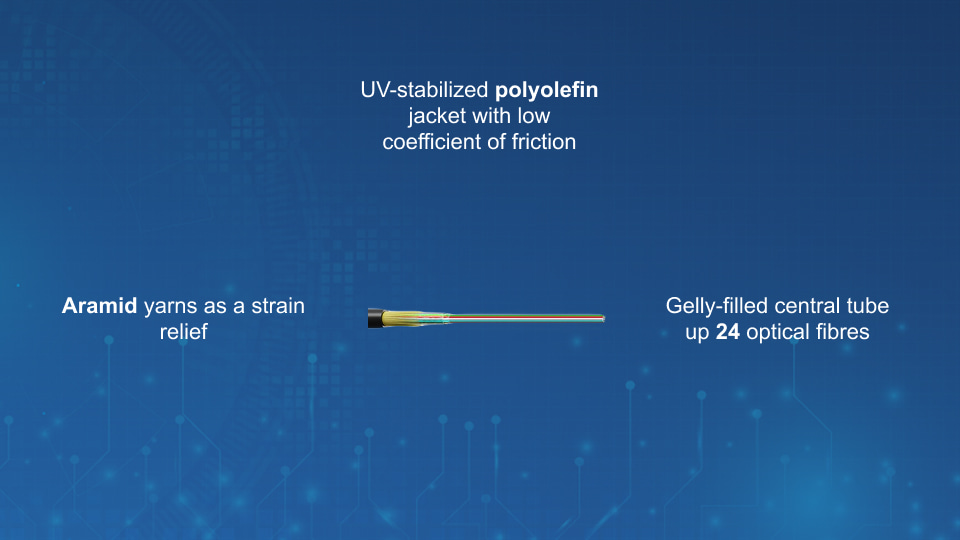

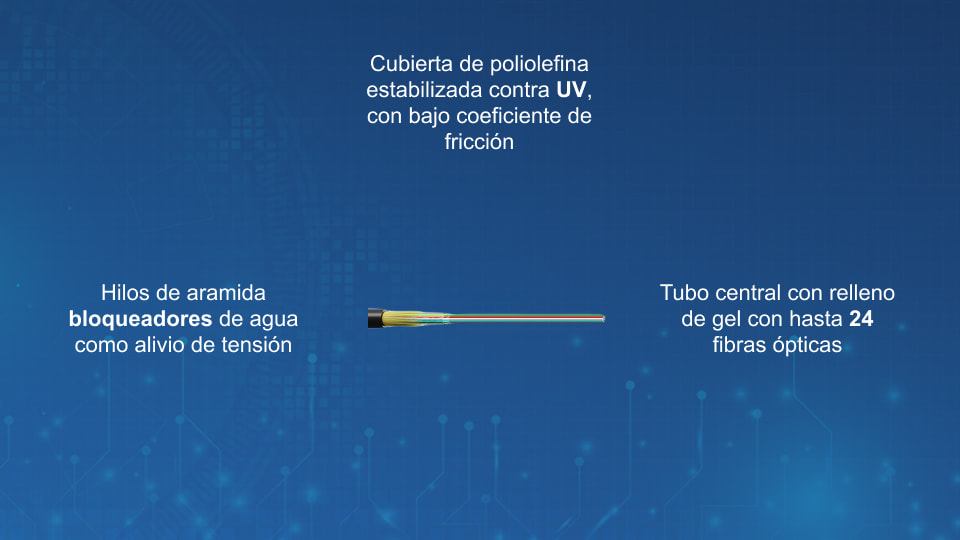

Telecom Microcables Air-Blown Last Mile Connection (Central-Tube Construction Single Jacket)

Características:

• UV-stabilized polyolefin jacket with low coefficient of friction
• Aramid yarns as a strain relief
• Gelly-filled central tube up 24 optical fibres
• Smallest outer diameter for blowing into ducts
• Handheld Fiber Blowing Cable

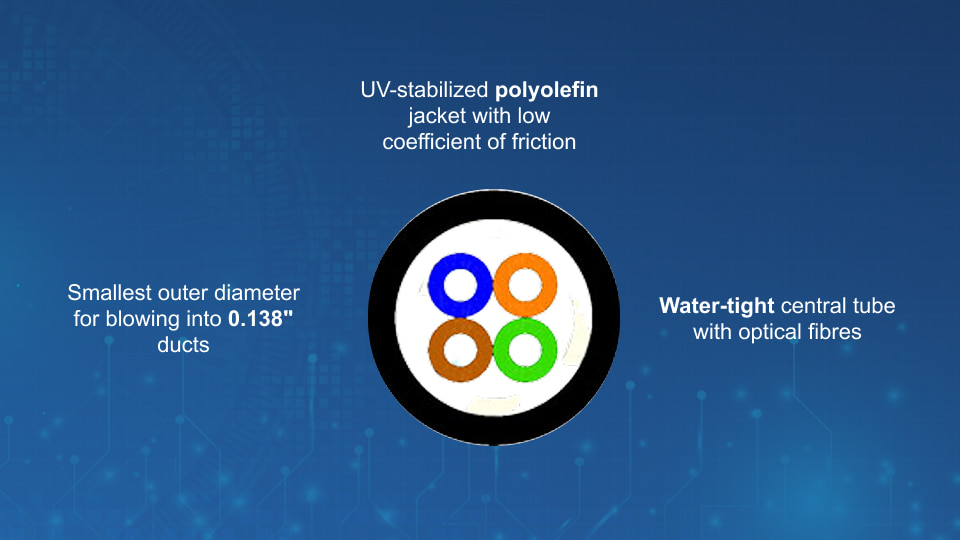

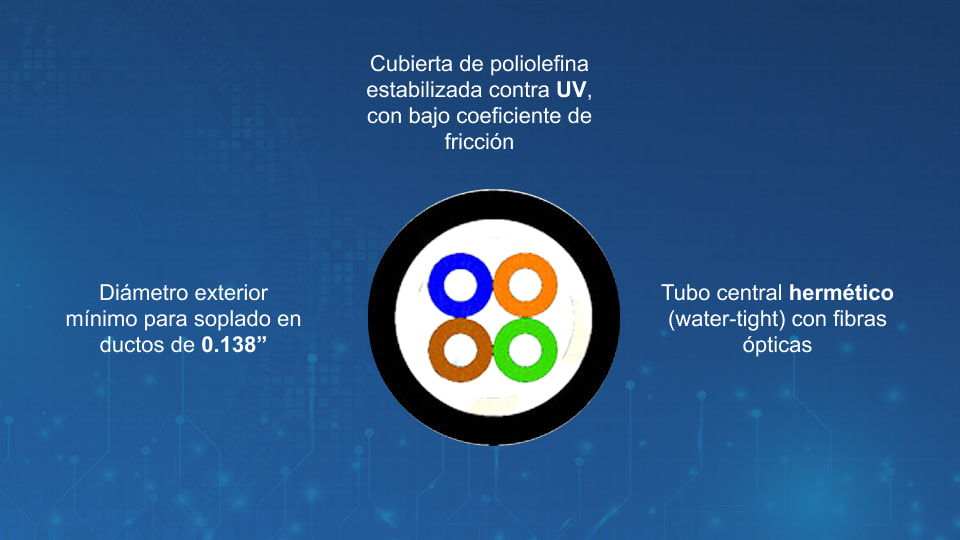

FTTH Last Mile Air Blown Drop Cable (Air-Reel)

Características:

• UV-stabilized polyolefin jacket with low coefficient of friction
• Water-tight central tube with optical fibres
• Smallest outer diameter for blowing into 0.138″ ducts
• Central tube (PBT) with up to 12 optical fibres
• Mechanical fibres fillers can be used
